Fully Hydraulic Mud Rotary Soil Investigation Core Surface Drilling Rig

Product Description:

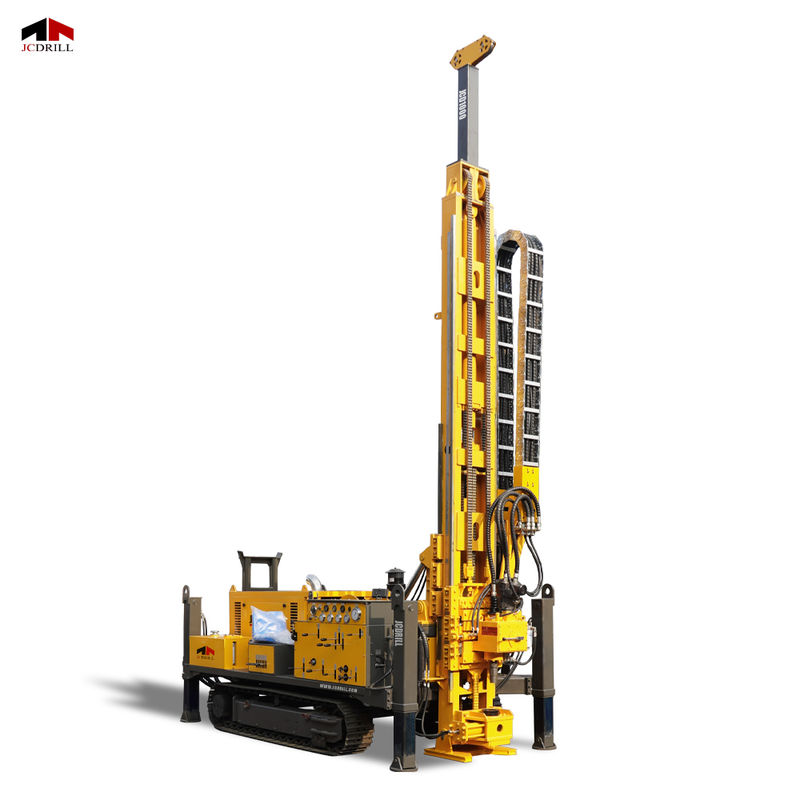

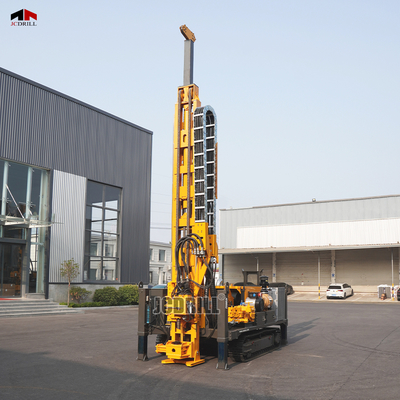

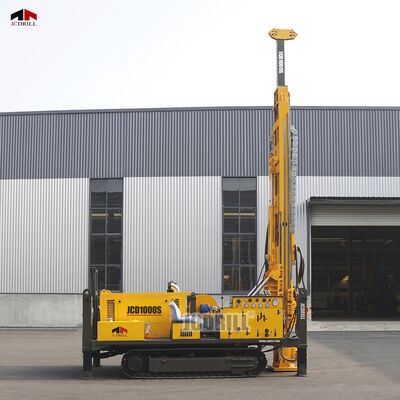

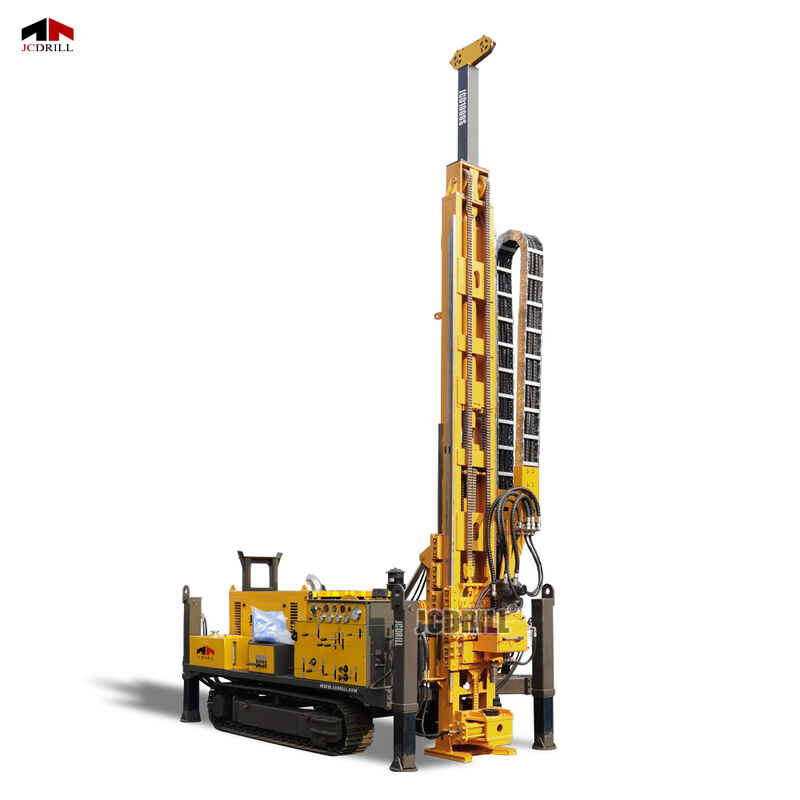

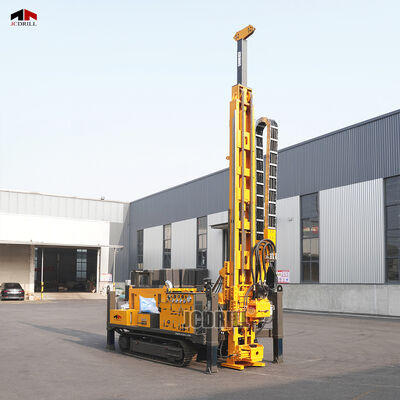

JCD1000 is designed for deepcore drilling projects  that require exceptional torque,extended stroke, and long-duration stability. Built toperform in tough geological formations, this fullyhydraulic rig supports HTW, NTW, and BTW drilling up to 1400 meters in depth. With a 118kW YUCHAI turbocharged diesel engine and a high-capacity 300L/min hydraulic system operating at 28MPa, it delivershigh torque output, smooth control, and reliableperformance under continuous load. The rig is equipped with a one-piece ground-touching mast that allows efficient angle adjustment from 45° to 90°, and features an extended 3500mm feed stroke for long-interval core runs. A powerful drilling system with torque up to 3500Nm and pull-up capacity of 28 tons ensures effective operation in high-resistance formations.

Parameter:

Features:

>> JCD1000 integrates a 118kW turbocharged engine and a 300L/min hydraulic system, offering strong, sustained output for deep and continuous drilling operations.

>> Its 3500mm feeding stroke and 28-ton lifting capacity provide excellent control and penetration in thick or complex geological layers, while supporting long core recovery runs with  fewer interruptions.

>> The combination of a BW-150 mud pump and a 1100-meter rope hoist ensures stable flushing and reliable lifting during extended deep-hole drilling tasks.

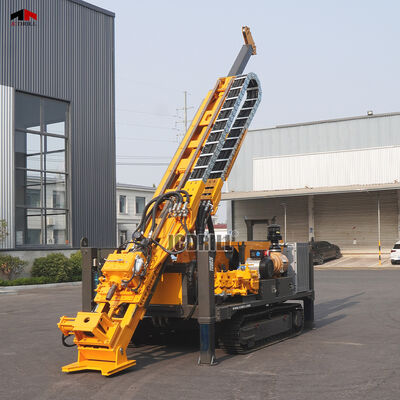

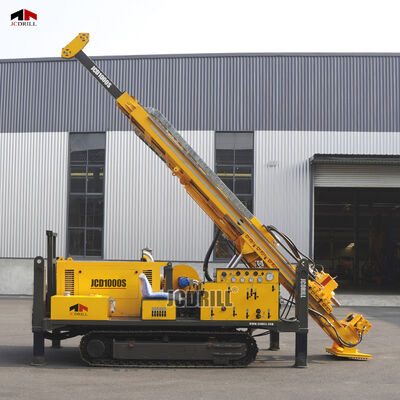

>> With dual operation modes, onboard  power generation, and terrain capabilities up to 40° slope, JCD1000 is  built for flexibility, efficiency, and endurance in the most challenging drilling environments.

Applications:

1. Large-Scale Deep Mineral Exploration
With a max depth of up to 1400 meters, the JCD1000 is ideal for exploring large ore bodies in hard or variable formations like copper, gold, rare earth, and iron ore deposits.

2. Complex Geotechnical Investigations
Suitable for deep subsurface evaluations in dam sites, tunnels, high-rise foundation studies, and underground mining feasibility studies, especially where high torque is needed.

3. Extended Core Recovery Operations
The 3500 mm feed stroke supports long, uninterrupted core runs, minimizing time lost to repeated rod pulling and increasing sample efficiency in deep holes.

4. Challenging Terrain Deployment
Thanks to 3.5 km/h mobility and 40° climbing ability, the JCD1000 performs reliably in mountainous, remote, or rugged regions, including forested or plateau areas.

5. Autonomous Field Operation
With manual and remote control, a built-in 11kW hydraulic generator, and heavy-duty systems, it's ideal for remote sites where independent power and flexible control are essential.

FAQs:

Q1: What type of drilling is the JCD1000 designed for?
A1: The JCD1000 is designed for deep diamond core drilling using wireline coring methods with HTW, NTW, and BTW drill rods.

Q2: What is the maximum drilling depth of the JCD1000?
A2: It can reach up to 1400 meters with BTW rods, 1100 meters with NTW, and 500 meters with HTW.

Q3: What engine powers the JCD1000?
A3: The rig is powered by a 118kW YUCHAI turbocharged diesel engine, offering stable and high-power output for demanding drilling operations.

Q4: How strong is the hydraulic system?
A4: The hydraulic system runs at 28 MPa pressure with a 300 L/min flow rate, delivering strong, steady performance for all drilling functions.

Q5: What makes the JCD1000 suitable for deep drilling?
A5: Its 3500mm feed stroke, 28-ton pull-up capacity, and up to 3500 Nm of torque allow it to perform well in high-resistance, deep-core drilling projects.

Q6: What mud pump and rope hoist system are used?
A6: It includes a BW-150 high-pressure mud pump (0–150 L/min, up to 7 MPa), and a 1100-meter rope hoist with 1000 kg lifting capacity, ideal for deep-hole flushing and lifting.

Q7: Is there an onboard generator system?
A7: Yes. The JCD1000 comes with a maintenance-free 11kW variable-frequency brushless hydraulic generator, providing 220V/380V auxiliary power for remote field use.

Q8: Can it operate in hilly or uneven terrain?
A8: Absolutely. With a walking speed of 3.5 km/h and a 40° climbing gradient, the rig is designed for rugged terrain and off-road mobility.

Q9: What are the transport size and weight of the rig?
A9: The rig’s transport dimensions are 6000 × 2100 × 2400 mm, and it weighs approximately 8.5 tons.
