| ชื่อแบรนด์: | JCDRILL |
| เลขรุ่น: | CSD600A 6 x 4 |
| MOQ: | 1 ชุด |
| ราคา: | Negotation |
| เงื่อนไขการจ่ายเงิน: | L/C, T/T, Western Union |
| ความสามารถในการจําหน่าย: | 2,000 ชุดต่อปี |
| Attribute | Value |
|---|---|
| Type | 6 x 4 Combined Truck Water Well Drilling Rig |
| Drilling Depth | 600m |
| Drilling Diameter | 140-450mm |
| Drilling Method | Mud Rotary and Air DTH |
| Warranty | 12 Months |
| Drill Pipe Length | 4m /4.5m |
| Drill Pipe diameter | 89 / 102 /114/127mm |
| After-sales service | Engineers available to service machinery overseas |
| Certification | ISO9001 |
| Voltage | Diesel Engine Driven |
| Engine | CUMMINS 132KW |
| Power type | Diesel |
| Condition | New |

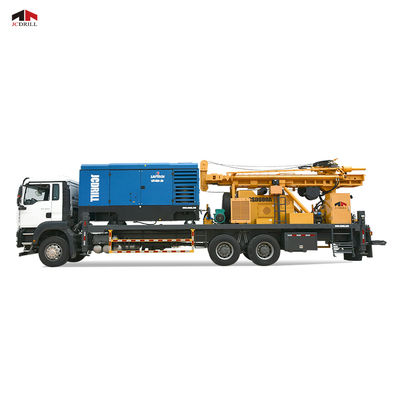

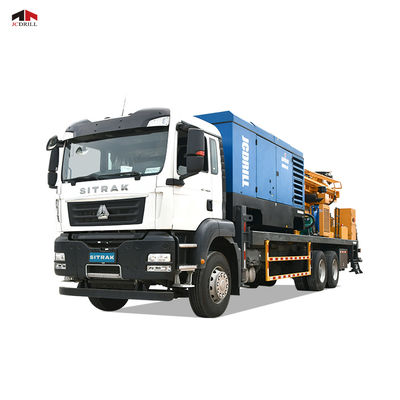

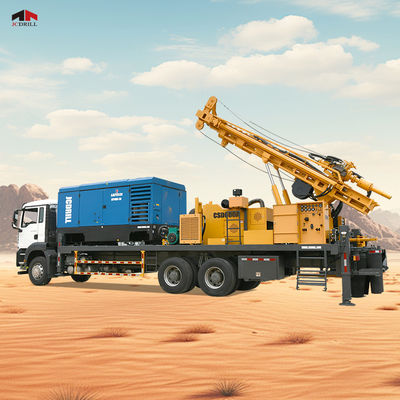

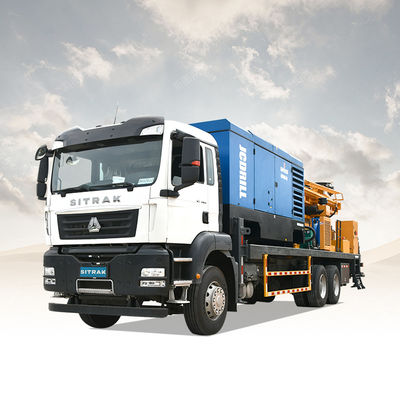

The CSD600A 6 x 4 combined truck mounted water well drilling rig is a heavy-duty, efficient, multi-function surface drill rig primarily used for:
Capable of drilling in various strata with diameters up to 480mm, this rig features advanced hydraulic technology with high torque hydraulic motor rotation and large-bore hydraulic cylinders.
| Geology drilled | All kinds |
| Drilling Type | DTH & Mud Rotary |
| Drill system and operation | Hydraulic |
| Hole Diameter | Φ140--Φ450 mm |
| Hole Depth | 600 m |
| Rotation Torque | 4500 Nm (1st Gear) 11000 Nm (2nd Gear) |
| Rotation Speed | 0-80 rpm (1st Gear) 0-100 rpm (2nd Gear) |
| Drill pipe diameter | 76/89/102/114 mm |
| Drill pipe length | 4000/4500 mm |
| Lifting force of Main winch (Optional) | 4 T |
| Lifting force of hoist | 0.8 T |
| Length of steel wire rope (tool winch) | 100 m |
| Lifting height of tool winch | 8 m |
| Diesel Engine type | CUMMINS |
| Rated Horse power | 132 Kw |
| Electrical System | 24 Volt |
Our comprehensive after-sales service system adheres to ISO-9000 standards, providing:
We offer "one equipment & one case" service that begins at order confirmation and continues throughout the equipment's working life.
