| ชื่อแบรนด์: | JCDRILL |
| เลขรุ่น: | CSD1300 |
| MOQ: | 1 ชุด |
| ราคา: | USD12,000/ Set |
| เงื่อนไขการจ่ายเงิน: | L/C, T/T, D/A, D/P, Western Union |
| ความสามารถในการจําหน่าย: | 10 ชุดต่อเดือน |
| Attribute | Value |
|---|---|
| Rotation Torque(Reverse/ Forward) | 12000-24000NM |
| Power | 400HP |
| Net Weight | 24T |
| Drilling Method | DTH& Mud Rotary |
| Lifting force of hoist | 2.5+4T |
| Length of Steel Rope | 40M |
| Feed Stroke | 6600MM |
| Shipping Dimension | 11600*2550*3650MM |
| Max. Drilling Depth | 1300M |

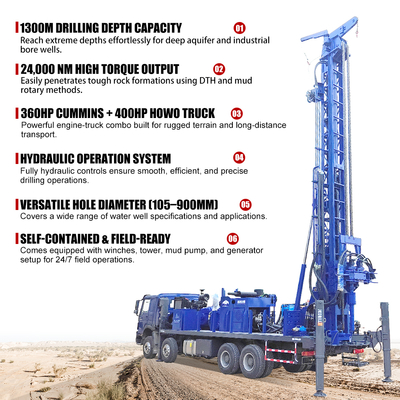

The CSD1300 is a high-performance, hydraulic-powered pneumatic drilling machine engineered for extreme depths, rugged formations, and maximum efficiency. Designed with precision and built to conquer, this truck-mounted deep water well drilling rig reaches depths up to 1300 meters with torque output up to 24,000 Nm, giving you unrivaled capability in DTH and mud rotary applications.

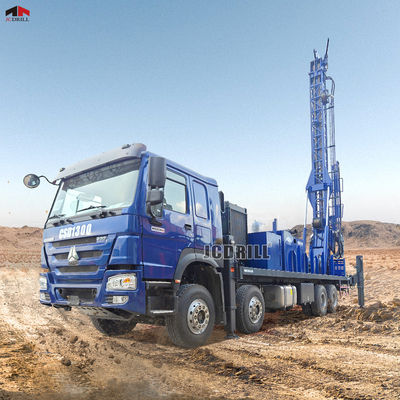

Featuring a Cummins 360HP diesel engine mounted on a robust 8x4 SINOTRUCK HOWO chassis, the CSD1300 is purpose-built for challenging terrains and long-haul durability. From remote villages to industrial construction zones, this rig transforms any site into a fully-equipped, self-contained drilling station - complete with generator setup, hydraulic-controlled tower, winches, and a BW1500/12 high-pressure mud pump.
| Specification | Unit | CSD1300 |
|---|---|---|
| Geology Drilled | All Kinds(DTH& Mud Rotary) | |
| Operation System | Hydraulic | |
| Hole Diameter | MM | 105-900 |
| Hole Depth | M | 1300 |
| Rotation Torque | NM | 12000-24000 |
| Rotation Speed | Rpm | 80-140 |
| Drill Pipe Diameter | MM | 89/102/114/127 |
| Drill Pipe Length | MM | 6000 |
| Feed Stroke | MM | 6600 |
| Winch Lifting Force of Hoist | Ton | 2.5+4 |
| Diesel Engine Type | CUMMINS | |
| Rated Horse Power | HP | 360 |
| Speed | RPM | 2200 |
| Truck Manufacturer | SINOTRUCK HOWO | |
| Rated Horse Power | HP | 400 |
| Discharge Standard | EU-2 | |
| Drive Type | 8*4 | |
| Max. Speed | KM/h | 102.9 |
| Steering Wheel | Left/ Right(Optional) | |
| Mud Pump Type | Diesel Engine | |
| Model | BW1500/12 | |
| Displacement | L/MIN | 1500 |
| Net Weight | Ton | 24 |
| Shipping Dimension | MM | 11600*2550*3650 |
A: The HydroForce CSD1300 is suitable for all formations, including hard rock, mudstone, and weathered layers via DTH and mud rotary drilling modes.
A: Yes! You can set up a generator for nighttime lighting or even field welding, making 24/7 operation possible.
A: Yes, the rig uses a hydraulic main drive, with hydraulic-controlled tower, landing legs, transfer case, and mud pump clutch system - making operation highly efficient.
A: The pulling capacity is 61 tons, while the push-down force is 6 tons, ideal for deep and complex well projects.

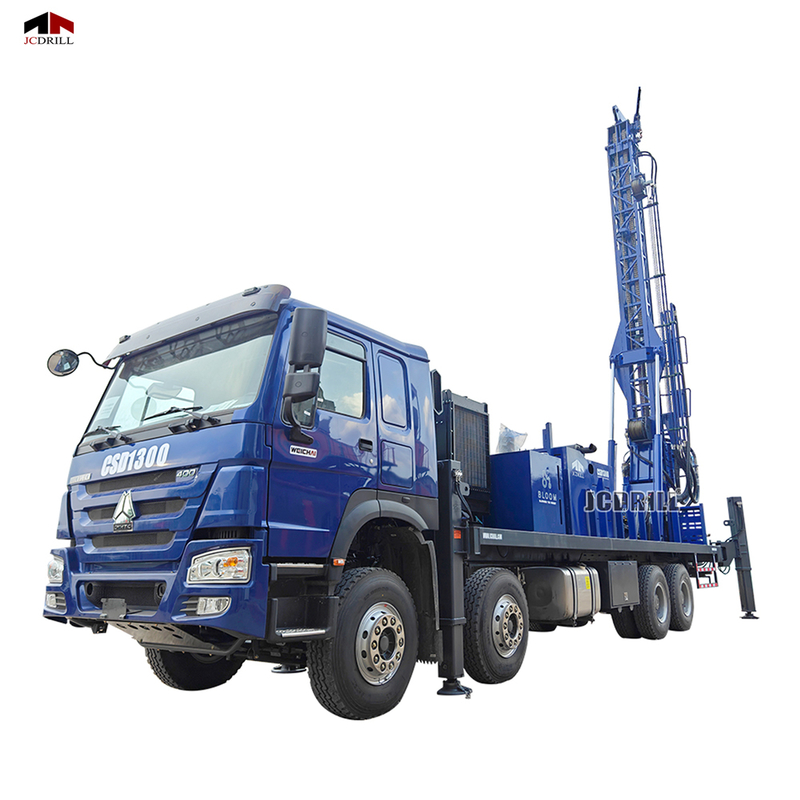

A: Mounted on a SINOTRUCK HOWO truck (8x4), it's fully mobile and highway-ready, ensuring hassle-free deployment to any site.
A: It has a shipping dimension of 11600×2550×3650 mm and weighs 24 tons.
